Steel Structure Design
STAAD and TEKLA-driven design with 3D models for stakeholder review before fabrication release.
Learn moreBuilding
The Future
With Steel.
A precision-engineered approach to pre-engineered steel buildings - designed, fabricated and erected for industrial, commercial and community projects across India.
0+
Projects Delivered
0+
Years Experience
0
States Covered
01 / Who We Are
Engineered for
lasting impact.

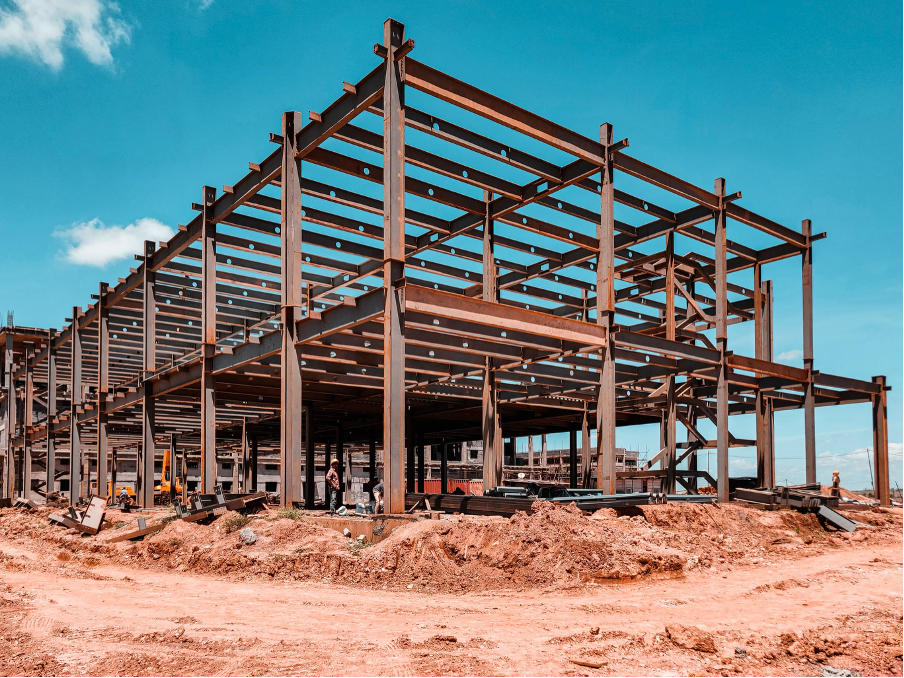

Innovative Building Solutions is a multi-storey steel structure and PEB manufacturer specialising in the design, fabrication and installation of high-performance steel building systems. Every project is engineered to its load profile, site conditions and operating life — never templated.
Our 2-acre manufacturing facility in Gubbi, Tumkur runs CNC laser and plasma cutting, automatic H-Beam PTW welding, airless spray painting and shot blasting under one roof. Our in-house engineering team designs and analyses every structure in STAAD and TEKLA — to IS, British and American codes — before a single member is fabricated.
Above all, we hold ourselves to a single standard: earn the trust of every client we work with. That means transparent costing with no hidden line items, open-book progress reporting at every milestone, and a refusal to compromise on material grade, weld quality or finish — even when it would be faster or cheaper to do so.
01
State of the Art Facility
2-acre plant in Gubbi, Tumkur. 350 MT / month rated output capacity.
02
STAAD & TEKLA Design
3D modelling and structural analysis on every project, reviewed before release.
03
Quality Standards
Designed and built to IS, British and American structural codes.
04
Client-First Approach
Single accountable point of contact from kick-off through handover.
02 / Services
End-to-end
PEB services.
From the first structural sketch to the final coat of paint — we manage every phase under one engineering roof, with one accountable team.
Structural Analysis
Load capacity, wind and seismic verification to IS, British and American structural codes.
Learn moreErection & Installation
On-site assembly by experienced crews with strict adherence to method statements and safety standards.
Learn moreFabrication & Processing
In-house cutting, welding, blasting and painting at our Tumkur plant — fully traceable.
Learn moreQuality Assurance
Material testing, dimensional checks and documented weld inspection at every stage.
Learn moreProject Management
Transparent costing, milestone-based reporting and a single accountable PM through handover.
Learn more03 / Why IBS
The IBS
advantage.
Six commitments we make to every client, measured against budget, schedule and structural performance.
01 / Velocity
Faster Construction
Pre-engineered components arrive site-ready — slashing erection times against conventional steel and RCC builds.
02 / Economics
Cost-Optimised Design
Our design team eliminates excess material without compromising structural integrity — typically saving 12–18%.
03 / Materials
Premium Grade Steel
Mill-test certified primary steel from tier-1 producers — full traceability from heat number to drawing.
04 / Engineering
Value Engineering
We re-evaluate every brief to identify cost-and-time wins without diluting performance or design intent.
05 / Reach
Karnataka & Beyond
Delivered projects in Bangalore, Tumkur, Mysore, Dharwad, Raichur, Hyderabad, Kerala and beyond.
06 / Community
CSR & Community Focus

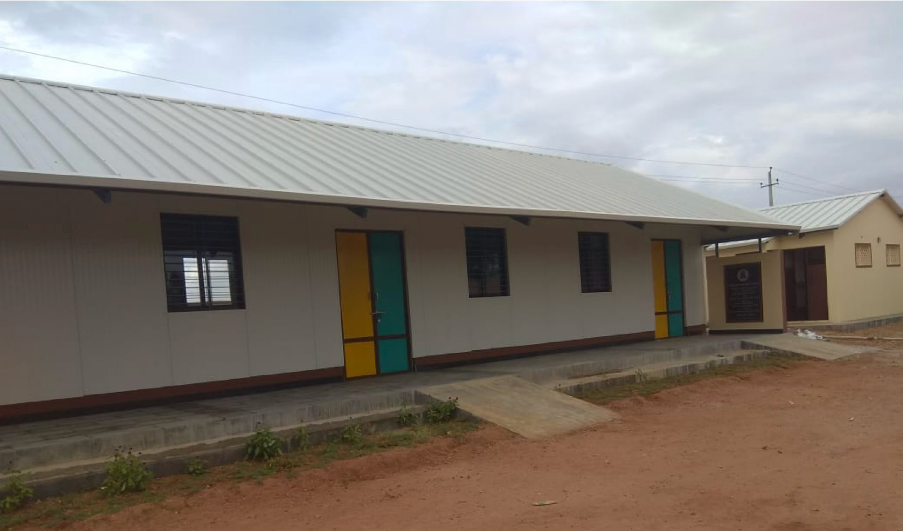

From government schools to gosalas — we commit a share of every project to community infrastructure.
04 / Manufacturing
State of the art
fabrication facility.
Two acres in Gubbi, Tumkur, with 25,000 sq.ft of covered shed, engineered for parallel fabrication of multiple PEB lines without compromising tolerance or finish.
2 acres
Total Plant Area
25,000 sq.ft
Covered Shed
350 MT/mo
Rated Capacity
01
CNC Laser & Plasma Cutting
Computer-guided precision cutting on material with tolerances within ±0.5 mm - every profile, hole and notch is repeatable to the drawing. The narrow kerf and minimal heat-affected zone preserve parent-metal strength and eliminate burrs. Components arrive at the weld bay clean, square and ready - no grinding, no rework.
02
PTW H-Beam Welding
Anchored by a Primo Automation Pull-Through Welder (PTW), pre-cut flange and web plates are tack-welded into an H configuration and drawn through the machine on motorised conveyors while a Twin-Wire Submerged-Arc process lays both fillet welds simultaneously - with a PLC regulating current, voltage and traverse speed, and laser seam-tracking holding the torch on the joint. The result: full-penetration, low-distortion welds with consistent leg geometry, repeatable from the first beam to the last.
03
Welding & Processing
All connection plates, cleats, gussets and associated parts are precision-cut on our CNC laser cutting machine, hand-assembled by experienced fitters to tight tolerances, and joined using semi-automatic and manual jacketed MIG/MAG welding by certified welders - clean fit-up, sound penetration and consistent finish on every connection.
04
Shot Blasting & Painting
SA 2.5 grade shot blasting delivers a near-white-metal surface profile - stripping mill scale, rust and contaminants for optimal coating adhesion and long-term corrosion protection. Primer and paint are then laid to the client's specified DFT, applied either by manual roller for touch-ups, confined areas and intricate surfaces, or by airless spray for high-output, uniform coverage on large structural members - selected to suit each project's requirement.
05
Infrastructure & Logistics
An owned fleet of cranes and trucks keeps every stage of dispatch under our direct control - no waiting on third-party rentals, no last-minute schedule slips. In-house EOT cranes handle heavy lifts inside the plant, while our own trailers move fabricated bundles straight from the yard to site in sequenced loads. The result: predictable lead times, faster turnaround, lower transit damage and reliable on-time delivery - even on tight project windows.
06
CAD/CAM Technology
Drawings flow direct from TEKLA to CNC - every cut, hole and notch is driven by the same digital model the engineer signed off. This end-to-end digital chain eliminates remeasure and manual transcription, removes the guesswork between design and shop floor, and gives clients full visibility of approved drawings before fabrication begins. The outcome: fewer human errors, tighter tolerances, faster throughput and a transparent, auditable process from model to member.
05 / Projects
Delivered across industry,
commerce & community.
Trusted by industry leaders

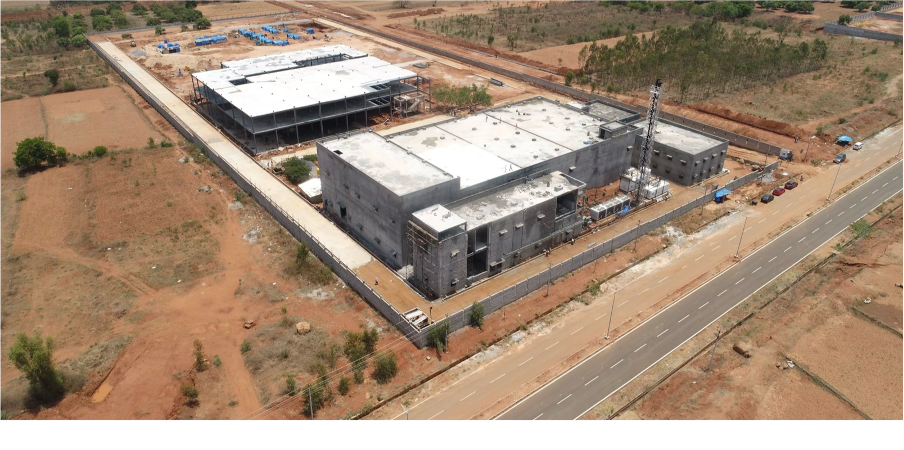

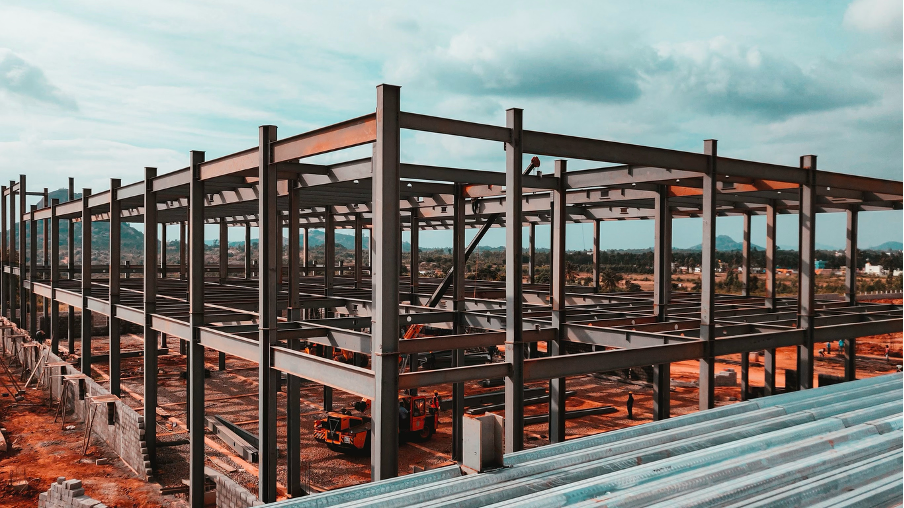

Shilpa Medicare
